Cherokee HD Tail Light Housings

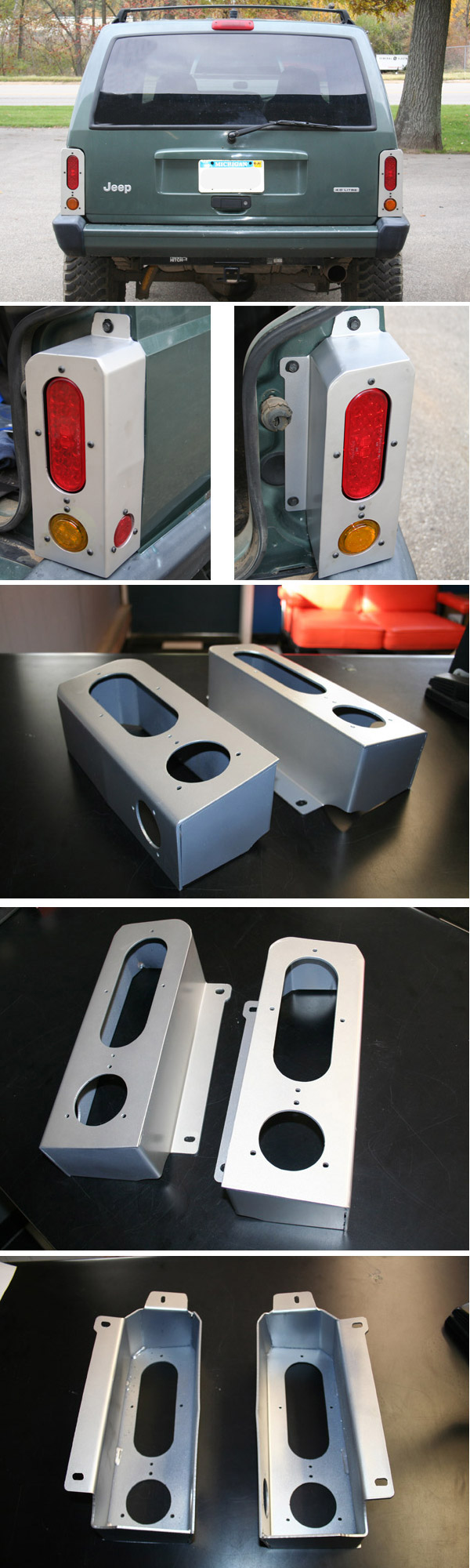

Are you tired of replacing your factory plastic tail lights after a good weekend of wheeling? Or are you looking to upgrade your lights to an LED type? Well then, this is just the product for you! These tail light boxes are custom built in house by JcrOffroad therefore quality is unsurpassed by other manufacturers. They are constructed from 1/8” high strength sheet steel and formed using in house CNC equipment; designed to work with a standard oval STT truck light, a 2.5" clearance (or reverse light) and features 2” side marker light. The lights mount using plastic flanges that mount on back side of the boxes to creating a sleek, and ascetically pleasing design.
Important product note: The plastic light mounting flanges will need to be trimmed to fit properly inside the boxes. This is an easy procedure that can be done in a garage. If you choose to purchase your boxes including lights, they will come already trimmed and ready to install.
All of our products come unfinished and ready for paint, unless otherwise stated.
LED are not included, but can be purchased here.
For a cheaper light option, these standard incandescent lights also will work for about $60 at your local Napa. Or source your own.
Napa Part#
GRO 52182 x 2 (Oval STT)
GRO 43222 x 2 (Oval Flange)
GRO 67000x 2 (Pigtail)
GRO 45822 x 2 (2" Red Clearance)
GRO 43152 x 2 (2" Flange)
GRO 45813 x 2 (2.5" Yellow Clearance)
GRO 43162 x 2 (2.5 Flange)
GRO 67050 x 4 (Pigtail)
All of our products come unfinished and ready for paint, unless otherwise stated.
Vehicle Inspections:
Some states require side marker lights and reverse lights. We have accommodated the side marker lights on all of our tail light boxes; however we don’t have room to also accommodate a reverse light. Your option for a reverse light is to re-configure the wiring to allow for the upper light to work as a Tail/Stop/Turn. This would allow for you to install a clear style reverse light in the bottom slot. If this is something you are incapable of, we would encourage you to choose the slotted side guards that allow for use with your factory tail lights. Another option is run one or two driving lights on your rear bumper to serve as reverse lights.
