JT Overland Bed Rack | Gladiator (2020+)
JT Overland Bed Rack | Gladiator (2020+)
JT Overland Bed Rack | Gladiator (2020+)
JT Overland Bed Rack | Gladiator (2020+)
JT Overland Bed Rack | Gladiator (2020+)
JT Overland Bed Rack | Gladiator (2020+)
JT Overland Bed Rack | Gladiator (2020+)
JT Overland Bed Rack | Gladiator (2020+)
JT Overland Bed Rack | Gladiator (2020+)
JT Overland Bed Rack | Gladiator (2020+)
JT Overland Bed Rack | Gladiator (2020+)
Purchase JT Overland Bed Rack | Gladiator (2020+)
  • SKU: JTXBR
    JT Overland Bed Rack | Gladiator (2020+)

  • ★★★★★ ★★★★★ 5.00/5 Stars. (1 Review)
  • JCR Direct:
    $1,799.00
    Now:
    $1,529.15

    Free Shipping!

    Weight: 160 (lbs)

    Quantity in Basket:  None



This universal bed rack system allows for mounting almost anything, (rooftop tents, kayaks, bikes, snowboards, shovels, axes...) freeing up valuable bed space for other trip essentials. Designed to fit over a Softtopper¹, maximizing storage space and flexibility. Comes coated with a 2 stage satin textured black powdercoat over durable zinc primer finish.


  • CNC cut and formed from 1/8" steel
  • Easy bolt together installation
  • Bolts into the factory Trail Rail System or clamps onto the bedsides (no drilling required).
  • Locking storage doors with struts that can be installed to flip up or down.
  • Will not work with factory bed cover.
  • Powder coated
  • 350lb dynamic (on-road) weight limit²
  • Hardware Included
  • Made in the USA
  • Free shipping!

¹ Fits Softtopper brand tops only. Top folding feature not supported, although you can pull the top bows from the side rail pins to remove or fold the top down. Roll up side and rear window "safari mode" works as intended.  Not compatible with Bestop Supertop for Truck. (Softtopper sold separately).

² Serious offroading with this much weight on rack is not recommended. Use your discretion when loading the rack and with vehicle speed when driving on jarring terrain. Vehicle instability or damage may occur.



Looking for answers to common questions about us or our products? See our FAQ here.

25 Questions asked on JT Overland Bed Rack | Gladiator (2020+)

Ask us anything



Q Chris Adams • 09/20/2021, 4:45:51 PM The rack is shown over the Softopper bed topper. Will it also fit over the Bestop 77326-35 Supertop for Truck 2?
A 09/23/2021, 12:51:41 PM It is not compatible with the Bestop.
Q Scott • 09/30/2021, 2:28:36 PM Is the softtopper still able to be collapsed with this rack?
A 10/05/2021, 5:13:26 PM It cannot be folded down on it's bows like the Softopper instructions say, but you can remove the bows from the pins entirely and collapse the top that way.
Q Tom • 10/12/2021, 3:43:28 PM Will this rack work with bed covers better? Is it easier to roll my truxcedo security cover up? Or will there be interference?
A 10/28/2021, 11:13:00 AM Yes, this rack can fit a wider range of bed covers. We haven't tried any specifically yet however.
Q Kyle • 10/13/2021, 9:57:50 PM Are the lights included?
A 10/18/2021, 4:36:36 PM They are not included. Look for our Roof Rack LED Light Kit!
Q Thomas Martin • 10/30/2021, 5:45:43 PM What is the length of the flip-up/flip-down panel? Height?
A 12/08/2021, 12:43:40 PM The doors are 14 1/4" x 45 1/2".
Q Ilya • 11/08/2021, 9:37:48 AM How much does this weigh?
A 12/07/2021, 3:06:04 PM About 120lbs with the doors installed.
Q Dave • 11/25/2021, 6:29:43 AM In the picture, are the tent rails mounted directly to the panels on the roof bars of this rack? Or did you guys use the tent mounting brackets? I can visualize the tent mounting being done either way but want to see what you chose on your demo gladiator.
A 12/07/2021, 5:26:54 PM The tent rails are bolted directly to the top rails of the bed rack, but it could be done either way.
Q John Taylor • 12/05/2021, 9:19:31 PM Would there be any way to rig up a rear door/guard for keeping stuff in the bed secure if you aren't using a softopper?
A 12/08/2021, 10:01:18 AM You could make something custom to attach to each rear upright, but we do not make a rear door at this time.
Q Gus • 01/02/2022, 11:59:42 PM Can rack items be locked?
A 01/04/2022, 5:58:27 PM The door latches come with locks.
Q Mark R Costa • 02/19/2022, 5:51:06 PM What is the static load rating for this rack?
A 03/04/2022, 1:55:10 PM We don't have an official static weight limit on this. Load at your discretion.
Q Kyle halterman • 02/28/2022, 11:53:43 AM 2 questions: 1, will you develop a rear facing door for this rack if I'm not running with a soft topper? 2 in the pictures, it looks as if their are lights only on one side is that the only side some flush mounted lights can go on?
A 03/04/2022, 1:39:16 PM No plans on a rear door, the lights are on one side because that panel folds down. They can bolt wherever.
Q Steve • 04/29/2022, 7:57:24 PM Will this fit over the AgriCover Outlander Soft Topper?
A 05/04/2022, 1:42:54 PM We have not tested that topper at this time.
Q Chris Cohoon • 07/09/2022, 10:56:39 PM Are the gas cans (shown mounted to the doors) included?
A 07/11/2022, 9:13:40 AM They are not.
Q Will • 07/15/2022, 9:52:25 AM The pictures of the rack on your truck show the cross members sitting flush with the top, while the product does not appear to be this way. There is a small lip on the sides. How will mounting a rtt work now?
A 07/18/2022, 10:00:14 AM The RTT will have aluminum extrusion rails under it as mounting locations. This will space it up some from the rack.
Q Drew Shepherd • 08/27/2022, 7:54:37 AM How high does this unit sit above the cab of the hardtop truck when installed? I’m short on clearance and need to ensure it will fit.
A 08/30/2022, 11:44:06 AM 3.5" above the highest point of the hard top.
Q Joshua Blaine • 09/25/2022, 7:11:52 PM Is there a weight limit on each of the side doors? Thank You in advance.
A 09/28/2022, 3:47:09 PM We designed them around about 50 lbs in weight capacity. That includes when being used as a shelf.
Q John Ramos • 10/24/2022, 7:30:03 PM What is the part # for the soft topper as seen in the pics?
A 10/27/2022, 10:51:09 AM SO-JGLDO-BSR
Q oliver diggle • 11/21/2022, 7:41:10 PM about how long is the install? and is that soft mesh also included as seen in photos?
A 12/01/2022, 10:31:10 AM The Softopper is not included. We would say 3-4 hours for the assembly and install.
Q Alex • 12/28/2022, 9:50:55 PM What Jerry cans and mount is pictured here? I want to make sure I get compatible ones.
A 01/03/2023, 2:56:24 PM Rotopax Standard Pack Mount and 2 gallon cans.
Q Alecsandr • 02/03/2023, 9:31:10 AM Softopper makes a tent section add on for the back, is there enough clearance for the over lap between the rack and the topper?
A 02/03/2023, 1:42:58 PM We haven't tested it. Don't think it will work between the rack and topper, but it could work OVER the rack.
Q Ben • 06/15/2023, 10:27:20 PM What is the total height above the cab (or total height above the top of the bedside)?
A 08/04/2023, 10:46:03 AM Roughly 25.75" above the bed rail.
Q Eric • 07/30/2023, 9:16:24 AM I have the Agri-cover Outlander soft topper on my ‘21 JTR, will this rack work with it? I’d be happy to try it out, I’m also a tester for Agri-cover. Thanks.
A 08/03/2023, 3:24:57 PM We do not have any experience with that specific topper to say for sure.
Q Brandon • 08/01/2023, 12:20:51 PM In the pictures you have axes,tools and traction boarded mounted but i do not see any mounting hardware on the website or links for any of hte munting hardware. Where do i find the mounting hardware (clips,hooks,etc)?
A 08/03/2023, 2:45:59 PM Really anything that can be bolted to our bed rack can be used. If you are mounting Maxtrax to the flippable side door then standard pins will work. For axes and shovels, we've had great luck using Quick-Fist clamps. If you are using the standard side rails instead of the flippable door, we do offer Maxtrax mounts which can be found here... https://www.jcroffroad.com/product/VBR-TRACBO.html
Q Matthew Edwards • 11/01/2023, 9:20:33 AM The description states the offroad weight rating is 350 lbs. What is the static weight rating and highway weight rating?
A 11/08/2023, 11:43:42 AM We don't have an official static weight limit on this. Load at your discretion.
Q Luis Alberto Aldaz Avila • 01/03/2024, 10:48:51 PM INCLUDES THE Softopper??
A 01/04/2024, 10:07:56 AM This is the bed rack only, it does not include the Softopper.
★★★★★ ★★★★★
5.00/5 Stars out of 1 Review
5
1
4
0
3
0
2
0
1
0
JT Overland Bed Rack | Gladiator (2020+)
(florida) | March 16th, 2022
So far what I have seen in my search. This is the best secure multipurpose bulletproof rack out there. I totally recommend .

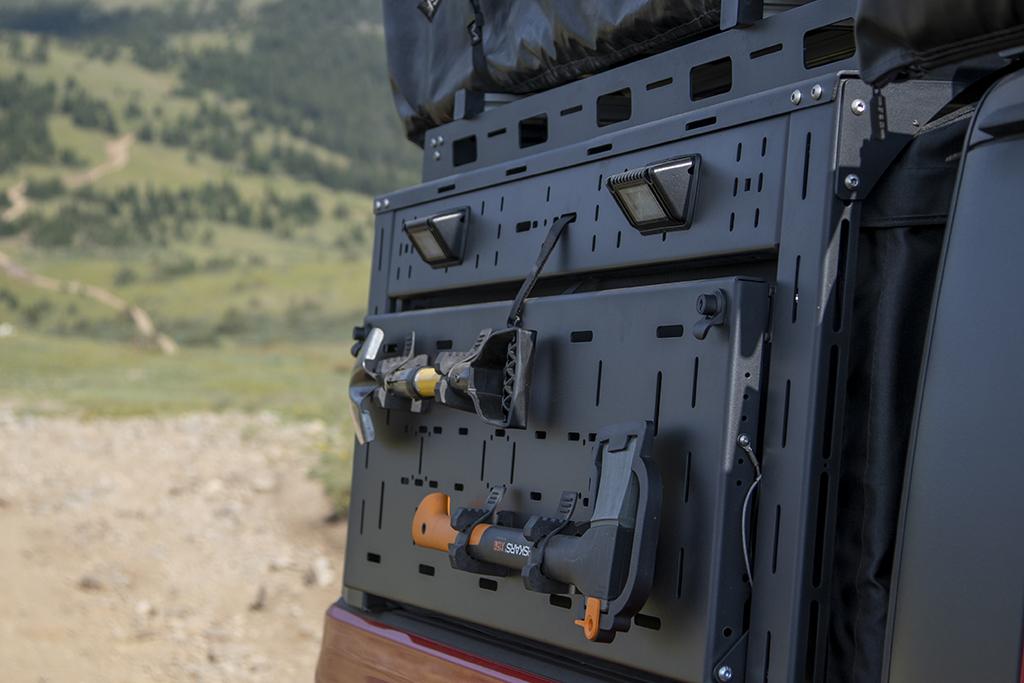

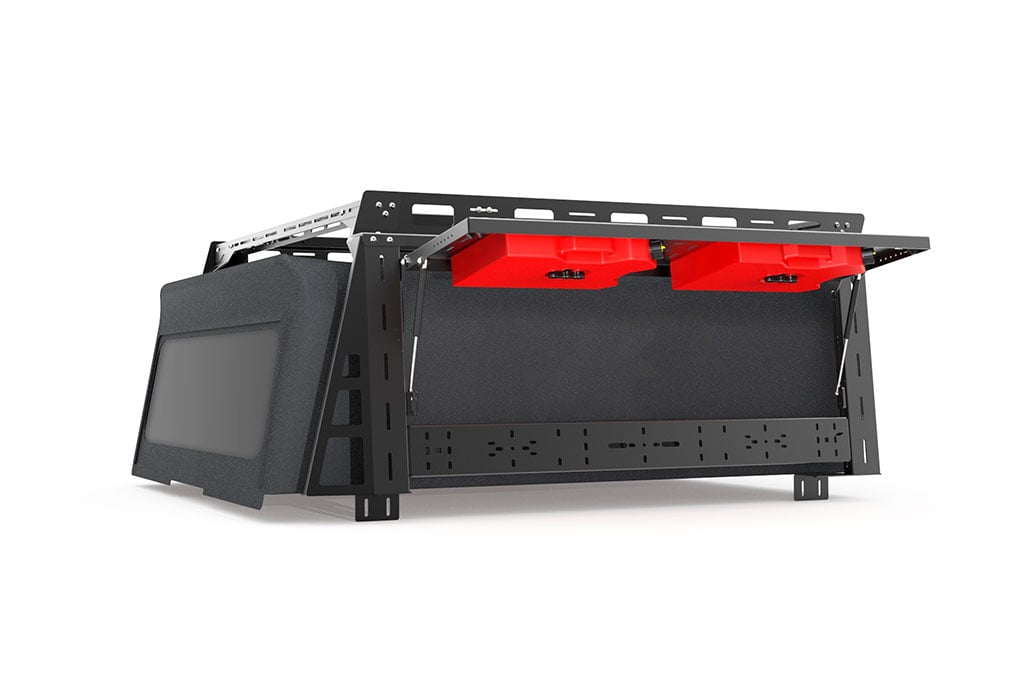

Install doors to flip up or down!


Interior & exterior storage
