JcrOffroad Universal Tire Mount
JcrOffroad Universal Tire Mount
JcrOffroad Universal Tire Mount
JcrOffroad Universal Tire Mount
JcrOffroad Universal Tire Mount
Purchase JcrOffroad Universal Tire Mount
  • SKU: UNI-TM
    JcrOffroad Universal Tire Mount

  • ★★★★★ ★★★★★ 5.00/5 Stars. (12 Reviews)
  • JCR Direct:
    $169.00
    Now:
    $143.65

    Free Shipping!

    Weight: 10.0 (lbs)

    Quantity in Basket:  None

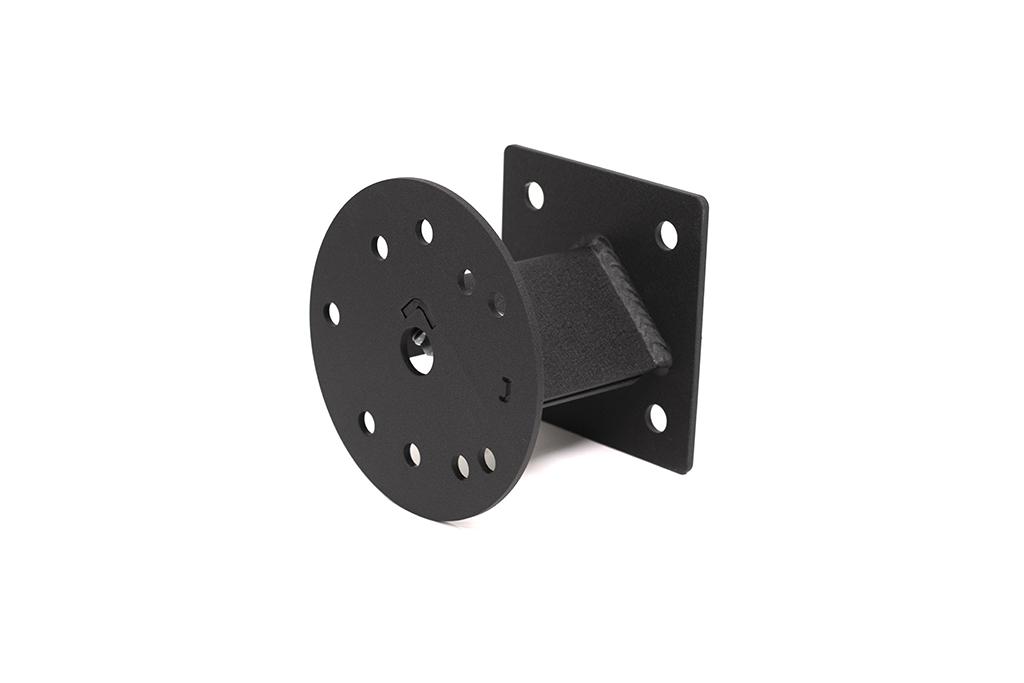

Universal Tire Mount

The tire mount is constructed of .188 thick steel. Built in adjust ability for the exact backspacing of your wheel. Comes coated with a 2 stage satin textured black powdercoat over durable zinc primer finish.

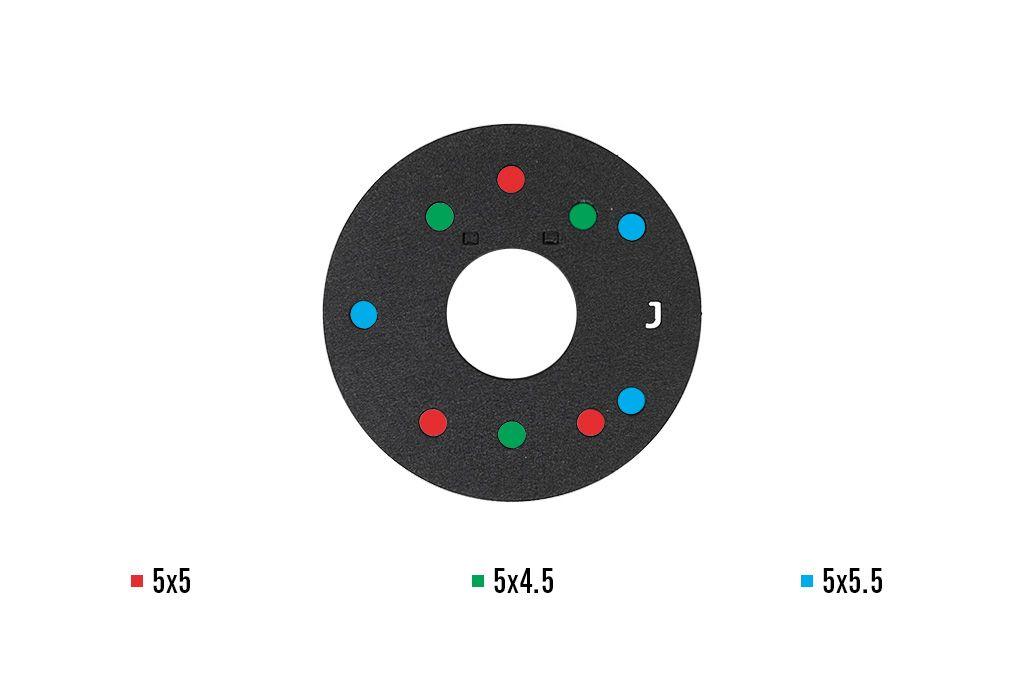

Available wheel two styles:

Jeep Patterns (5 Lug)
  • 5 on 4.5 bolt pattern (TJ, YJ, XJ)
  • 5 on 5 bolt pattern (JL, JT, JK, WJ, WK)
  • 5 on 5.5 bolt pattern (CJ, Ford)

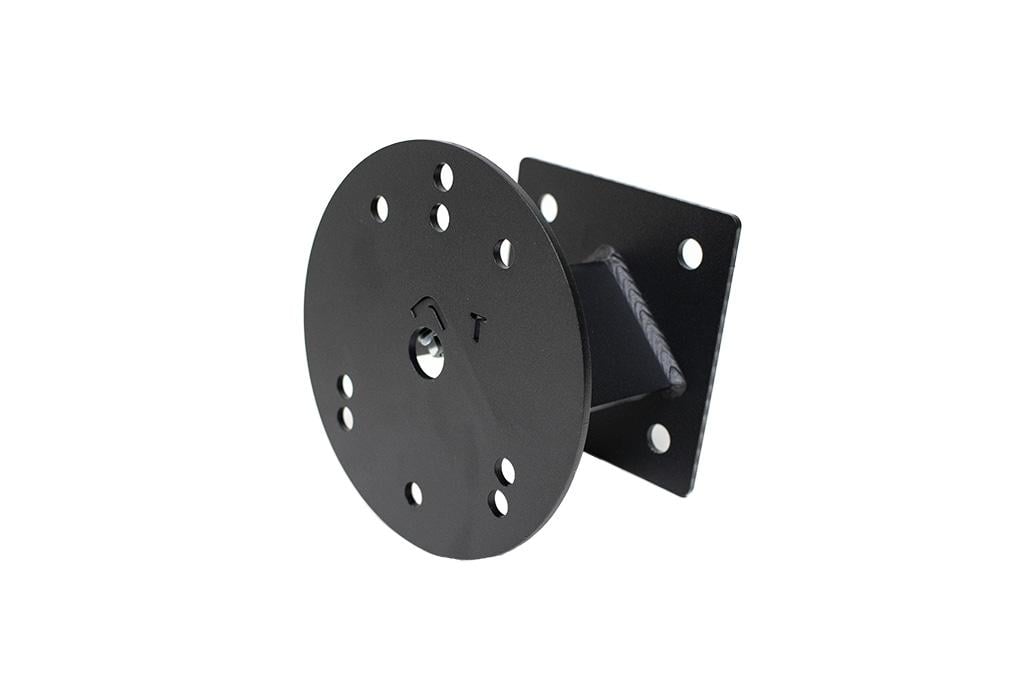

Truck Patterns (6 and 8 Lug)

  • 6 on 5.5 bolt pattern (Chevy, Toyota, Bronco 6g)
  • 8 on 6.5 bolt pattern
  • 5 on 150 bolt pattern

*Supplied with 1/2-20 wheel studs and acorn lug nuts (uses 13/16" socket.) Depending on wheel, different lug nuts may need to be sourced. For factory Toyota wheels, use Gorilla Automotive 72187 short shank lug nuts.

The tire mounts are designed for a wheel mount surface to tire sidewall distance of 5 - 8" (this should not be confused with backspacing, the tire sidewall will add extra width to your backspacing number.) The tire needs to be adjusted tightly against the carrier or surface once installed to help stop vibrations from fatiguing the tire mount, carrier, rack, or bumper. If your tire does not sit flat against your mounting surface when installed please contact us.



Looking for answers to common questions about us or our products? See our FAQ here.

13 Questions asked on JcrOffroad Universal Tire Mount

Ask us anything



Q Sam Thomas • 06/10/2020, 7:06:58 PM Does this adapter bolt to the stock tire carrier?
A 06/16/2020, 9:57:53 AM No it does not.
Q Zachary Grieves • 07/01/2020, 4:27:45 PM Would this adaptor mount to the top of the JT half bed rack? I’m looking to mount my spare on top of it.
A 07/07/2020, 2:10:54 PM Yes, but you would need to mount that to VRKACM-PC (https://www.jcroffroad.com/product/VRKACM-PC.html) and space your bars correctly.
Q Pat Ferry • 07/04/2020, 6:51:44 AM Does this mount to your adventure carrier?
A 07/07/2020, 2:10:54 PM Yes
Q David Garrett • 07/14/2020, 10:11:10 AM Can this hold a 38” tire mounted on a 24x14 wheel?
A 07/15/2020, 12:39:23 PM These mounts are designed for a wheel mount surface to tire sidewall distance of 5 - 8"=. The tire needs to be tight against the carrier once installed. As long as your wheel backspacing and tire sidewall will accommodate that, then yes. One thing is a wheel and tire that wide will add extra leverage to the whole system. You may need to frequently check bolt torque and any fatigue.
Q Marcos • 10/27/2020, 1:47:03 PM Would dis be able to attach to the XJ adventure roof rack?.
A 11/03/2020, 3:33:15 PM The old tube version yes as-is, the new aluminum version yes, but our Roof Rack Accessory Mount (https://www.jcroffroad.com/product/VRKACM-PC.html) is required as well.
Q Jacques Roberts • 10/30/2020, 3:07:33 AM Will this mount to your discontinued prerunner rack for Jeep Cherokees (XJ)?
A 11/03/2020, 3:33:15 PM Yes it will.
Q Levi • 02/09/2021, 10:50:33 PM Can y’all make one for a 8x170mm bolt pattern
A 02/15/2021, 1:32:05 PM Sorry, we don't offer the metric 8 lug pattern. You could drill it however.
Q Roy • 03/11/2021, 10:48:36 AM Any chance you will offer this with an 8x170mm Ford bolt pattern?
A 03/16/2021, 3:15:09 PM Not in the plans currently.
Q Levi • 12/20/2021, 0:06:43 AM Do y’all think you will offer in a 8x170 bolt pattern? And if not can you make an option to order one without any holes for someone to drill it themself?
A 12/22/2021, 4:12:13 PM No plans to offer that pattern at the moment, but there should be enough room on the truck version to drill an 8 x 170 pattern yourself. Just rotate the pattern 30 degrees clockwise or so.
Q Chris • 01/16/2022, 10:03:23 PM What's the bigs tire the mount and or bumper can carry
A 01/21/2022, 11:41:47 AM Usually blocking a tail light becomes the issue more than the weight. Contact tech support for more information about your specific bumper & setup. 269-353-1184 info@jcroffroad.com
Q Keri • 04/06/2022, 4:36:03 PM Can you add a 3rd brake light to this mount?
A 04/26/2022, 5:41:55 PM Not easily, no.
Q Chris Boveda • 05/28/2023, 5:15:29 PM Are the treads on the lugs for the carrier jeep tread pattern? What is the tread pattern on the supplied lugs?
A 06/27/2023, 5:04:49 PM The Jeep option does include Jeep specific bolt patterns. Please see product description and product photos for all bolt pattern options.
Q Chris • 03/04/2024, 3:24:07 PM What is the weight limit on this carrier
A 03/11/2024, 11:46:31 AM This tire mount does not have an official weight rating, if you have any questions about your particular set up, please reach out to our support team. Info@jcroffroad.com
