Diode Dynamics Elite Series Fog Lamps (pair) | Jeep Wrangler JK (07-18)

✓ Fits: 2007-2018 Jeep JK Wrangler
✓ Install: Plug-and-play, bolts into the factory fog light location
✓ Road legal: SAE F3 compliant fog pattern
✓ Warranty: 8-year limited warranty
✓ Assembled in: USA (St. Louis, MO)

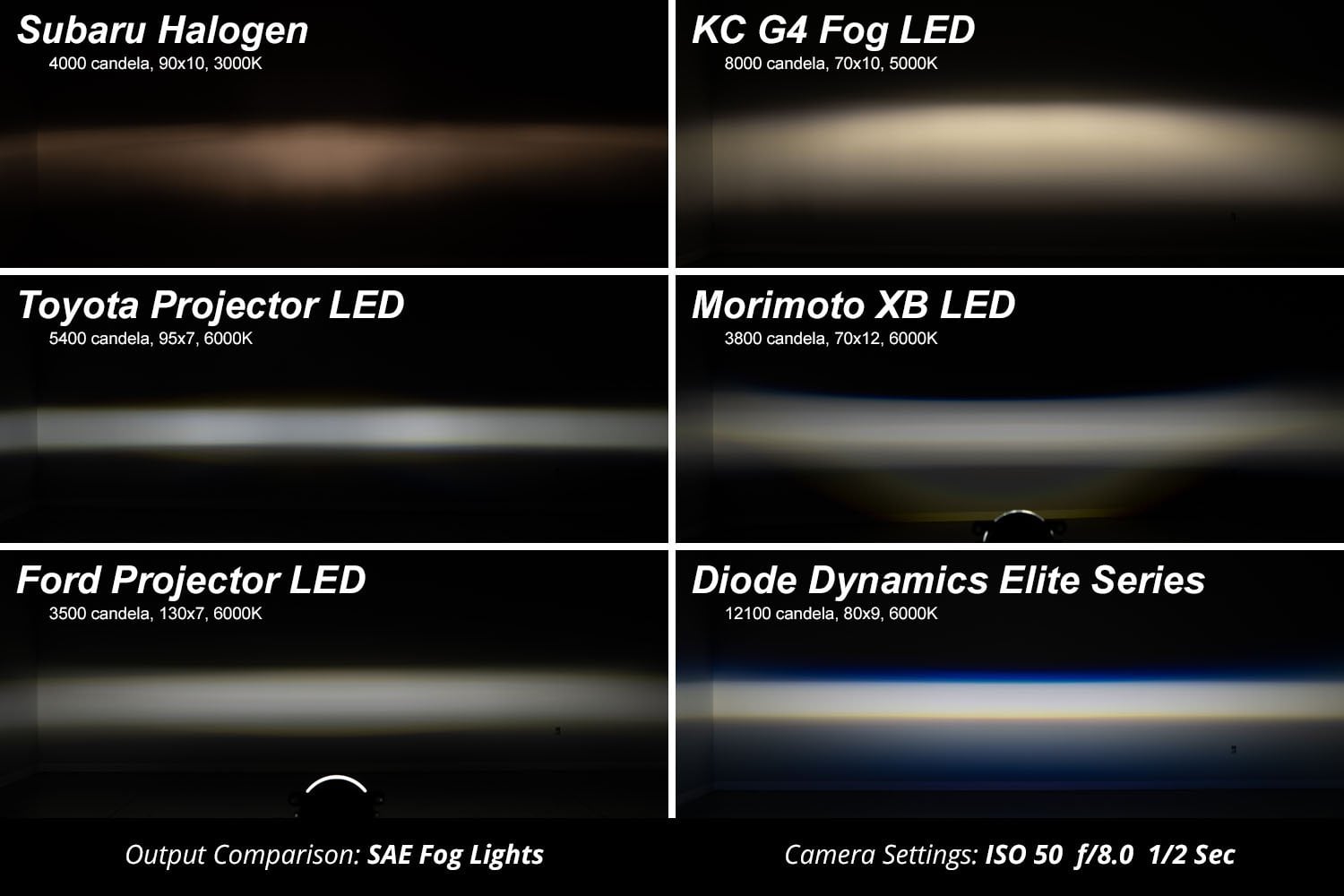

Diode Dynamics' Elite Series Fog Lamps are OE-style replacements built for real output. A custom single-piece PMMA optic throws an 80-degree wide, smooth fog pattern with a sharp cutoff, delivering up to 5 times the output of halogen fog lights. Every lamp includes an integrated amber backlight, and installation is plug-and-play using the included waterproof adapters.

Features

• High-performance OEM-grade replacement for the Jeep JK Wrangler
• Custom-engineered optic for an extremely wide, intense beam (80° x 6°)
• Integrated amber backlight, wire to any constant 12V source with the included taps
• Road-legal fog light (SAE F3 compliant)
• Plug-and-play main beam, no modification needed

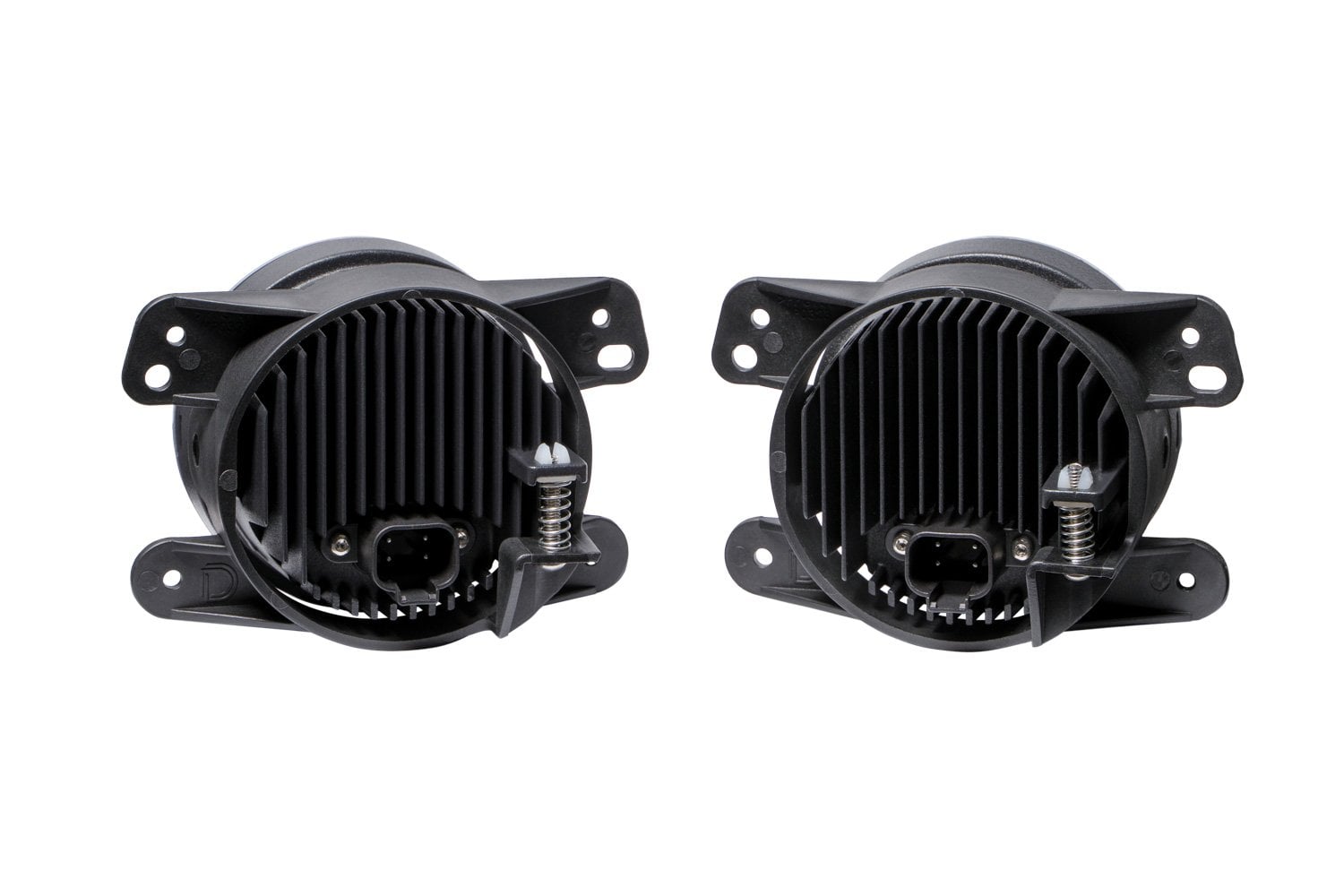

• Precision aluminum housing, UV-coated lens, copper-core circuit board, sealed with urethane epoxy
• Engineered and assembled in the USA

Choose Your Color

• Cool White (6000K): crisp, modern output that matches other LEDs on your Jeep (DD5130P)
• Yellow (3000K): selective yellow for better contrast in rain, snow, fog and dust (DD5131P)
• Dual-Color (6000K/3000K): switch between white and yellow with your factory fog switch, same beam pattern in both colors (DD5184P)

In the Box

• Two (2) Elite Series Type M fog lamps
• Two (2) 9006 4-pin DT backlight tap wires
• Two (2) 5202 4-pin DT backlight tap wires
• Two (2) T-taps
• Mounting guide

Specs

• Intensity: White 13,000 cd, Yellow 11,400 cd, Dual-Color 12,900 / 9,200 cd
• Raw lumens: White 1,850 lm, Yellow 1,650 lm, Dual-Color 1,500 / 1,250 lm
• Beam: Fog, 80° x 6°
• Power: 18W (White/Yellow), 13.2-13.5W (Dual-Color), backlight 0.3W
• Operating voltage: 9-16V
• Connector: Deutsch DT
• Operating temp: -40°F to 185°F

Fitment Notes

This kit replaces factory fog lamps. If your Jeep did not come with fog lamps, additional hardware and wiring may be needed. If installing in an aftermarket bumper, confirm the mounting points match.
