Jeep Cherokee XJ Roof Rack Mounts
Our rack mounts are cnc cut from .188 and .125 steel, cnc formed, and welded in house. They are 5.456" total height from base to top. We only use quality 5/16" hardware. Standard kit includes 6 mounts, 6 clamps, and 6 sets of hardware. Ship bare metal.

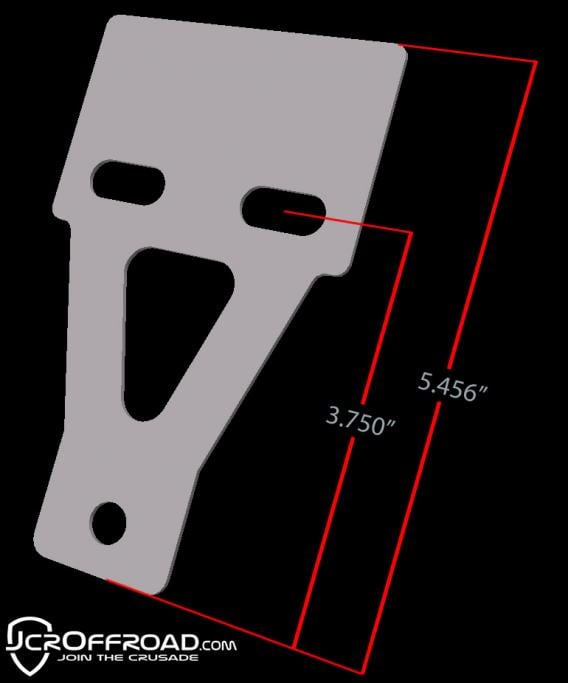

See product images for detailed dimensions.
Minimum shipping charge applies.
Looking for answers to common questions about us or our products? See our FAQ here.
7 Questions asked on JcrOffroad Roof Rack Mounts | Jeep Cherokee XJ (84-01) •
Ask us anything
Q Mikal W • 05/14/2020, 11:18:37 PM Just wondering if it's at all possible to buy less than 6 of these? for some reason the 99 xj I bought has 4 of them and spots for 2 more. It would be nice to be able to buy 2.
A 05/15/2020, 2:12:13 PM Sorry, they are bundled in packs of 6.
Q cody burns • 07/09/2020, 8:30:05 PM Do you still sell the roof rack that is shown in these pictures with the mounts?
A 07/10/2020, 11:07:47 AM No we do not.
Q Allen Newman • 08/04/2020, 1:44:13 AM the 2 slotted holes. What size fastener would fit in them
A 08/05/2020, 12:41:14 PM 5/16 bolts.
Q Bron • 10/17/2020, 3:09:45 PM What’s the weight bearing limit on the mounts. Thanks!
A 10/20/2020, 6:37:16 PM We have no load rating data for the XJ drip rail, the mounts are stronger than the rails.
Q Danni Louvros • 11/15/2020, 1:12:08 PM Are these weld on? Like you have to weld them to the roof rack? How do they mount to the rack, basically
A 11/16/2020, 10:00:05 AM Weld on.
Q Forest Howell Gilbert • 07/29/2021, 7:20:08 PM My rack I aluminum so I can't weld, can I bold then?
A 08/12/2021, 2:32:10 PM Sure, you can use the holes for bolts.
Q Marcus K. • 11/16/2022, 4:13:57 PM What is the purpose of the two slotted holes on each mount?
A 11/18/2022, 2:48:06 PM They are used if you want to bolt these onto something as opposed to welding them on.
4.57/5 Stars out of 7 Reviews
Write a Product Review: JcrOffroad Roof Rack Mounts | Jeep Cherokee XJ (84-01)
Daniel (NV) | March 3rd, 2021
These worked out great for the rack I built for my dad's 1968 Baja bug. Don't know how some one else welded them on backwards, it was simple to see how they needed to be welded on. I had to modify 2 out of the 6 I bought to fight the smaller gutter by the rear windows but it pinched and held strong. I would buy these for any rack project. Only downside is one of them had the welded nut not centered to the hole so I had to run a tap and put threads into the side of the bracket before it went into the nut, no big deal. You guys should allow pictures to be added to comments.
Russ (Alberta Canada.) | May 8th, 2020
Mounts came exactly as described. Great quality As always from Jcr. And the textured power coat finish is good. My only concern is the width of the bottom of the bracket that fits into the gutter rail. I would have liked for it to be a little wider to help spread the load of the rack over a larger area on the thin sheet metal the gutter rail is made out of. However I knew that before I purchased these and I don’t plan on putting hundreds of pounds up on the roof. If you plan on putting lots of weight on your jeeps roof then I would recommend buying two sets of these mounts to better disperse the load on the gutter rails.
Angel Zayas (North Carolina) | May 3rd, 2020
Beffy and great mounts for my roof top tent, my roof rack turn out really great and solid recommend 100%
Sean (FL) | January 28th, 2020
These mounts are solid sturdy and well made. Perfect for the custom rack I'm welding up.
Anonymous | December 31st, 2016
"As I always have to do things differently I was designing my own roof rack and I was looking for just the right gutter mount and these hit the mark. My son was so impressed with the design and look he ditched his roof rack and I purchased a second set for his."
Anonymous | December 31st, 2016
As I always have to do things differently, I was designing my own roof rack and I was looking for just the right gutter mount and these hit the mark. My son was so impressed with the design and look he ditched his roof rack and I purchased a second set for his.
Horacio (California) | January 24th, 2021
Due to the lack of a tutorial and/or pictures showing how to weld the mounts to the rack, I ended up welding them backwards, and it will require to redo the entire work. What a waste of time and money!
